U-60 middle double wheels hanger to weld

The U-60 middle double wheels hanger to weld is a system especially used for the overlapping and curved doors. It´s an hardware which goes through the top track and has to be welded in the gates panels by permitting the sliding and swinging curved door movement.

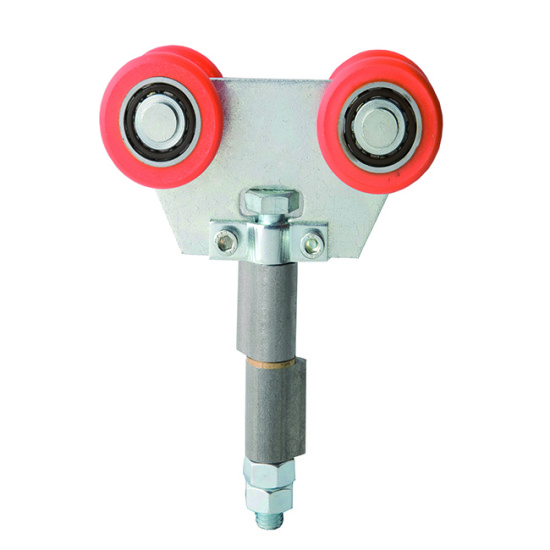

This hardware has 4 nylon wheels, two reducing rings and a brass washer allocated between two reducing rings. The reducing rings are the elements welded to both door panels. By welding each reducing ring to the panel, which enables the gate to fold and swing.

In Estebro, we manufacture hardware for hanging sliding doors, overlapping doors, curved gates and accordion doors. Those hardware are available either for metallic doors or for wood doors. The main part of our hardware for hanging sliding doors are available in steel and stainless steel.

If you want more information on our hardware for hanging sliding doors, you can download our catalogue or request more information through the contact form.
