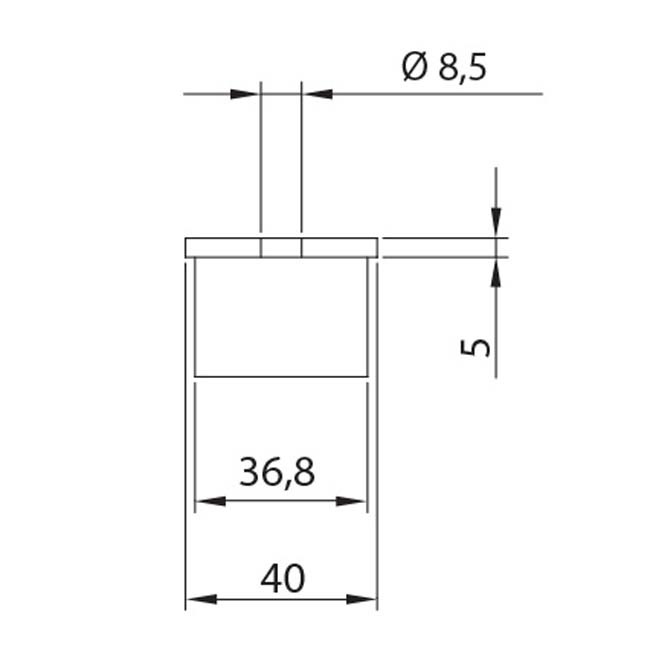

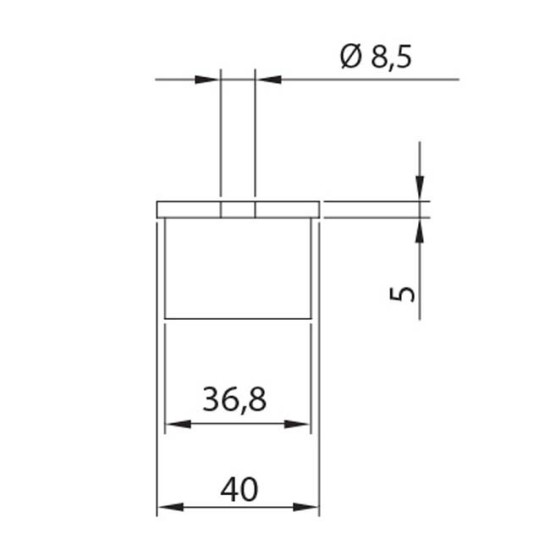

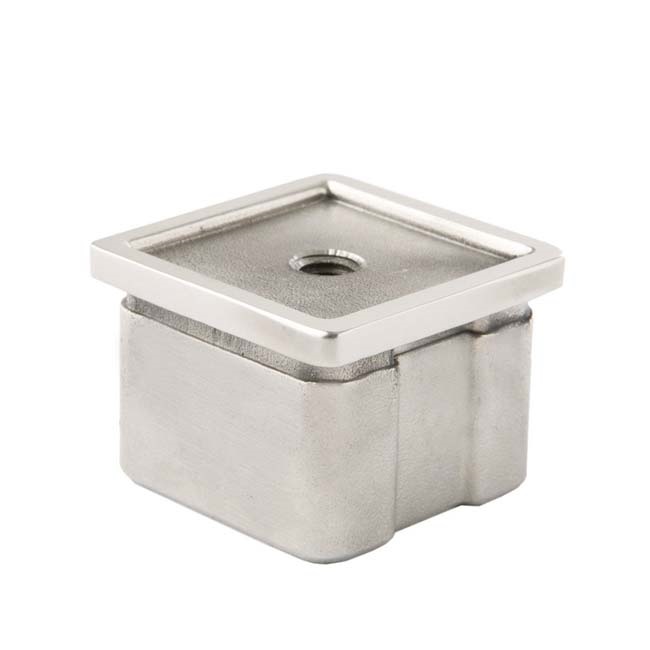

The support is an element of union between two perpendicular tubes, one of them being fixed with M.8 screw. This support is available in AISI 316 stainless steel in satin and polish finish.
In Estebro, we have a large range of accessories for stainless steel handrails for 40x40x1,5 mm tube and other accessories for stainless steel handrails in round tube.
If you want, you can obtain further information by downloading our catalogue or by requesting information through our contact form.
Installation advice
- Drill and thread the tube
- Fix the support by uniting it with AD100 adhesive (we recommend to clean carefully the area to unit)
- Fix the support to the tube with 1 stainless steel M.8 screws.
If in the union screwed, you want to put a mayor fixation, you can apply a few drops of AD100 adhesive in the stainless steel screws, so then, it would not be possible to remove the union.
Download our catalog stainless steel handrails C-Line. You can download it after filling in the following form.
