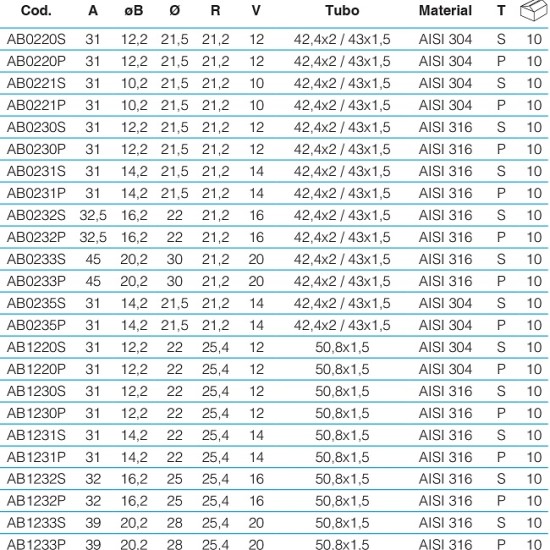

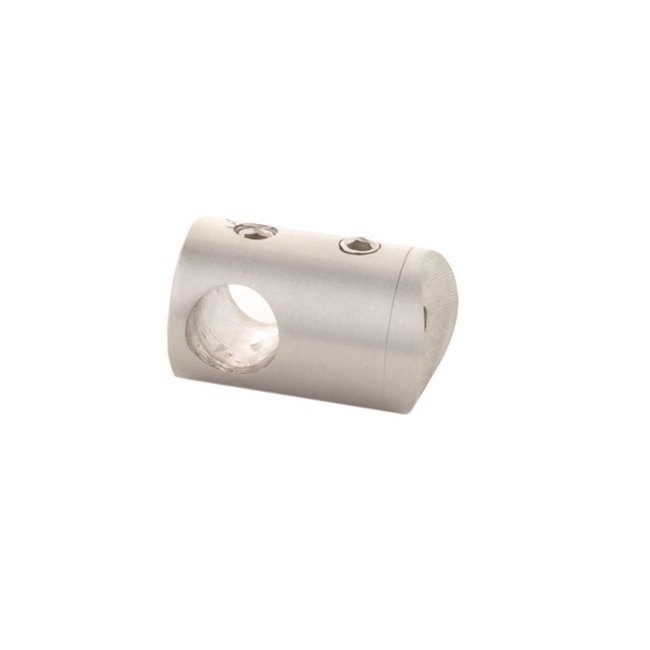

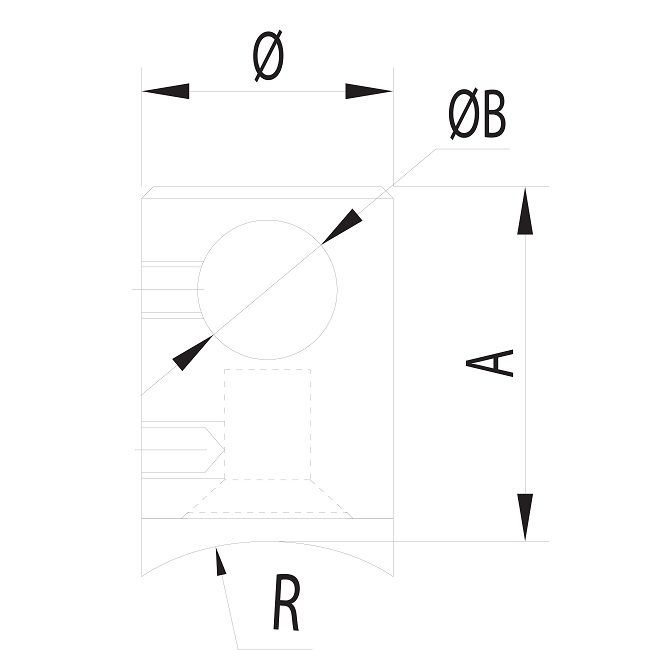

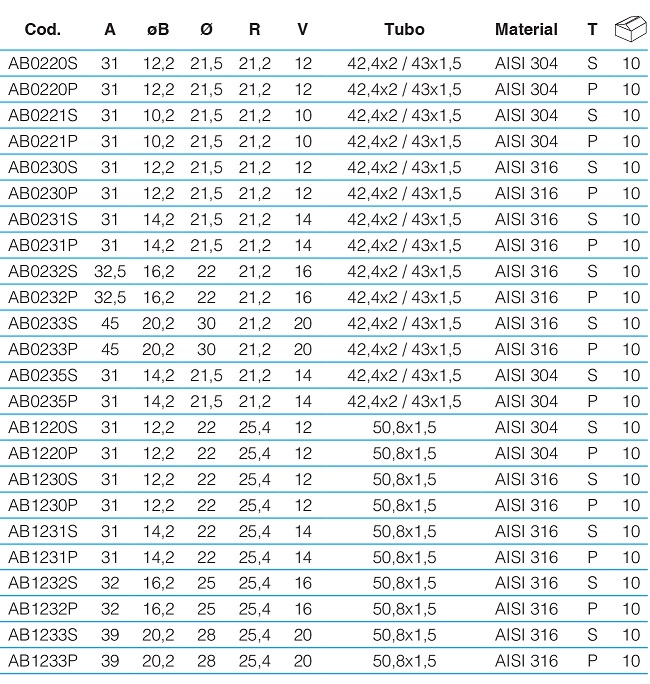

The tube holder is an accessory for the stainless steel handrails assembly. This holder has the function to hold the round bars and is a union element between the tube and the round bar. This connector is available in AISI 316 and AISI 304 stainless steel for 42,4×2 mm, 43×1,5 mm and 50,8×1,5 mm tubes.
In Estebro, we are specialists in accessories for stainless steel handrails and banisters for stairs. In this section, you will find all kind of supports for stainless steel tubes. Do you prefer your handrail with crystal? We can also offer you for crystal handrails, do not miss it.
If you are interested in stainless steel handrails, you can download our catalogues or request further information by filling our contact form.
Installation advice:
- Loosen the grub screw to separate both components of the connector: the base of the tube and the tube fixation.
- Drill and thread the tube.
- Connect the base to the tube with stainless steel M.6 screw.
- Slide the bar in the drill of the fixation piece.
- Connect both pieces and fix them by tightening the set screws of the bar and of the base.
Download our catalog stainless steel handrails R-Line. You can download it after filling in the following form.
