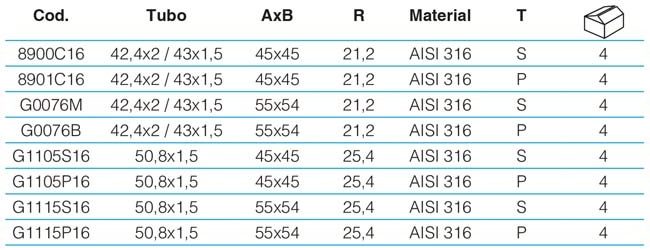

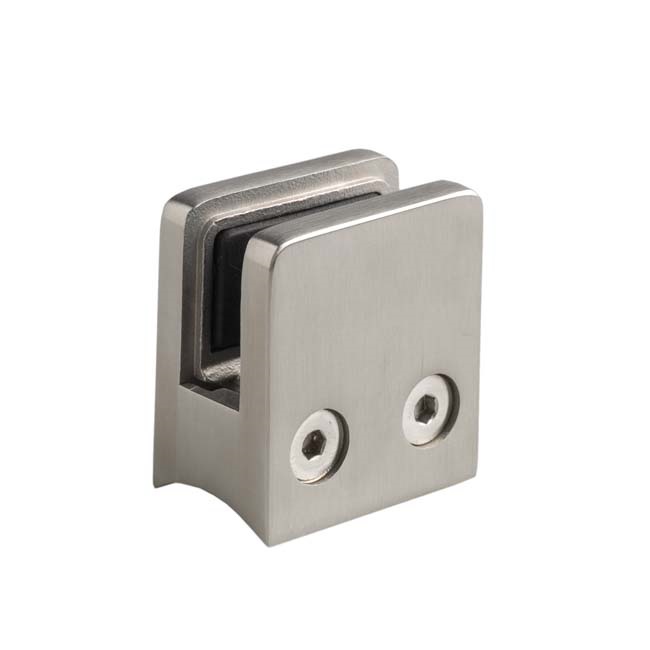

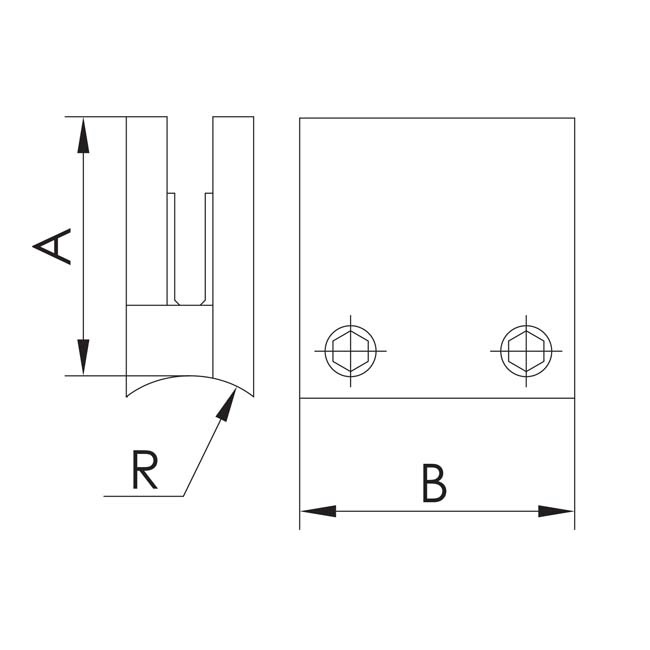

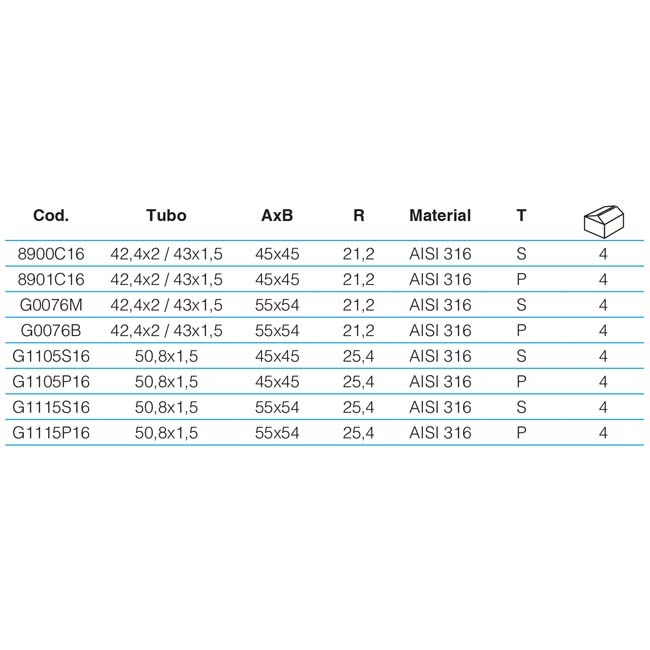

Stainless steel clamps with squared shape are designed for 42,4×2 mm tubes, 43×1,5 mm tubes and 50,8×1,5 mm tubes. Those glass clamps have the function to hold the glass panels and are available in satin and polish finish, AISI 316 stainless steel. The clamps are valid products to create stainless steel and crystal handrails.
In Estebro, we have a wide range of clamps, accessories for glass handrails, glass stairs… and other stainless steel accessories for handrails.
If you want, you can obtain further information by downloading our catalogue or by requesting information through our contact form
Installation advice:

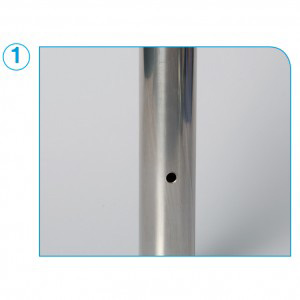

- Drill and thread the tube to the corresponding measure.

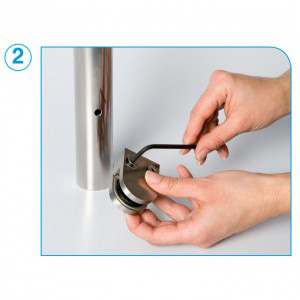

- Loosen the screws of the clamp and divide the piece in two parts.

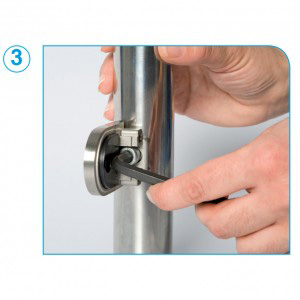

- Screw the clamp base to the tube.
- Place the glass.

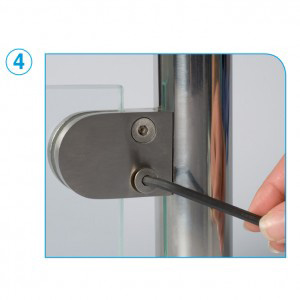

- Finish the clamp assembly.
Tip: If a mayor subjection is required, you have the possibility to place a security pin inside the clamp by drilling the crystal.

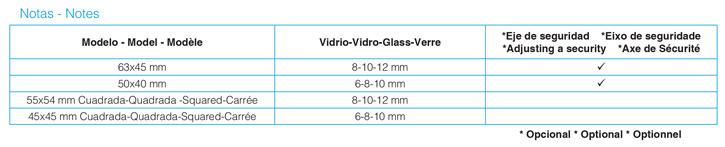

Notas
