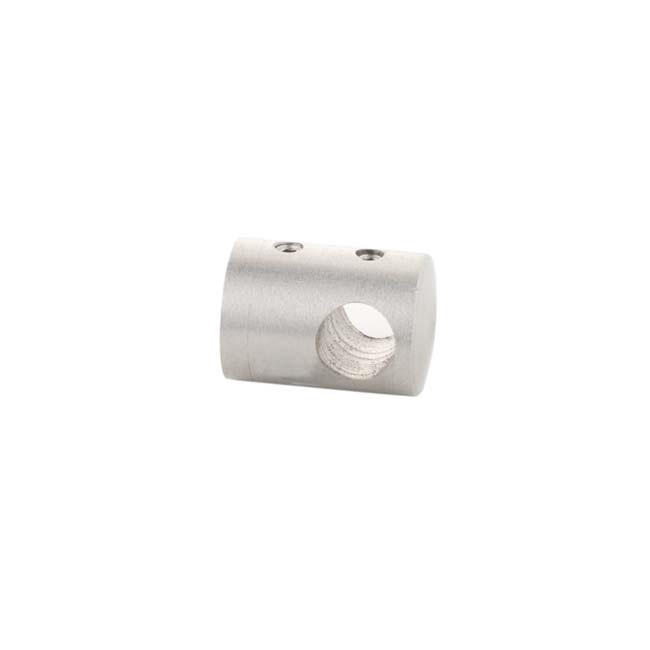

The AISI 316 stainless steel round bars holder flat base is an accessory for stainless steel handrails. The function of this connection is the union between the plane tube and the round bars. This connector is used for the Ø12 mm round bars.
In Estebro, we offer you a wide range of accessory for stainless steel handrails for 40x40x1,5 mm tube… we also have a R-Line composed of accessories for stainless steel handrails in round tube to create stainless steel de Ø42,4×2 mm, Ø43×1,5 mm, Ø50,8×1,5 mm handrails.
If you are interested in this kind of accessories for stainless steel handrails and you would like to have more information or know the rest of our accessories for stainless handrails, you can keep exploring our website, download our catalogue or request more information.
Installation advice:
- Loosen the grub screws to separate both components from the connector: the base of the tube and the clamping of the platen.
- Drill and thread the tube
- Unite the base to the tube with stainless steel M.6 screws.
- Slide the platen in the drill of the holding element.
- Unite both elements and fix them by tightening the grub screws of the platen and the base
Download our catalog stainless steel handrails C-Line. You can download it after filling in the following form.
