Estebro, your specialists in gate hardware and stainless steel railing systems.

Height adjustable support

Stainless Steel Railings Height Support
Stainless Steel Railings Height Support AB0282SPStainless Steel Railings Height Adjustable Support

Height adjustable support:

The height adjustable support is an accessory for stainless steel handrails belonging to the R-line.

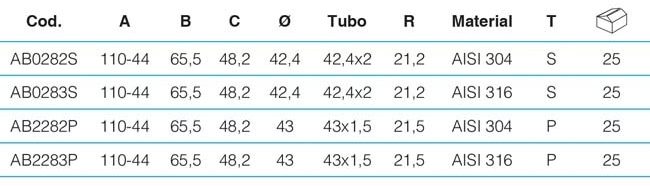

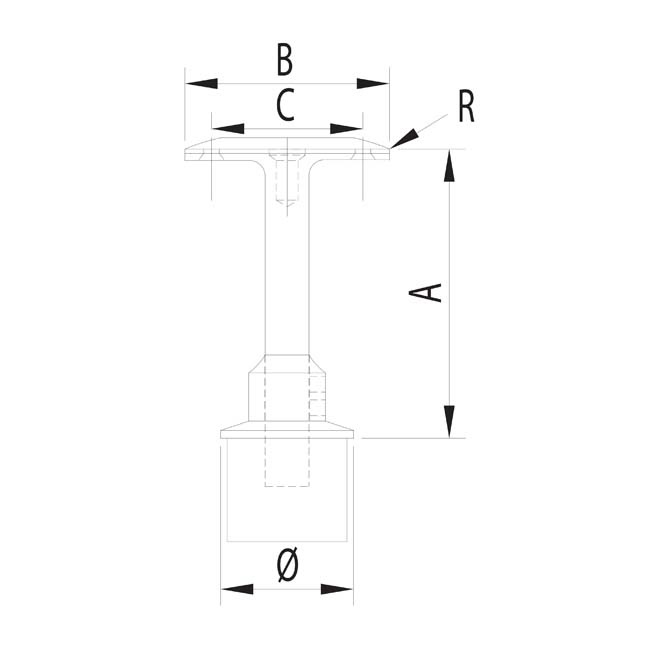

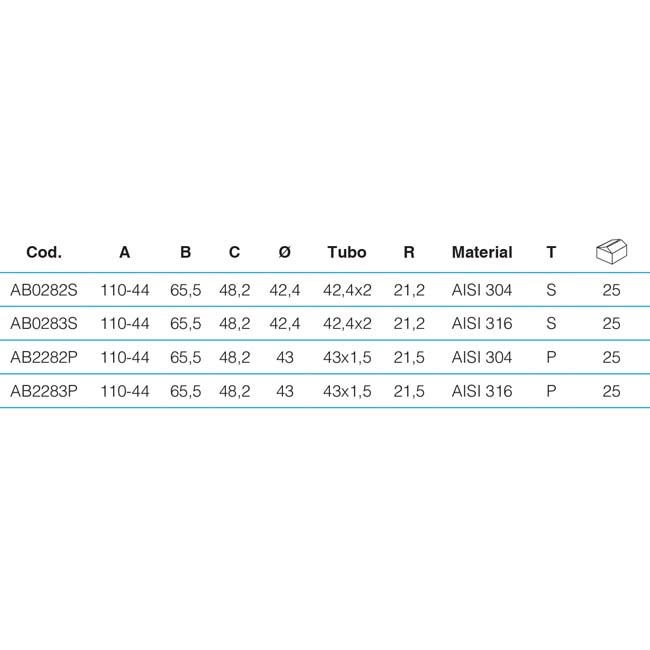

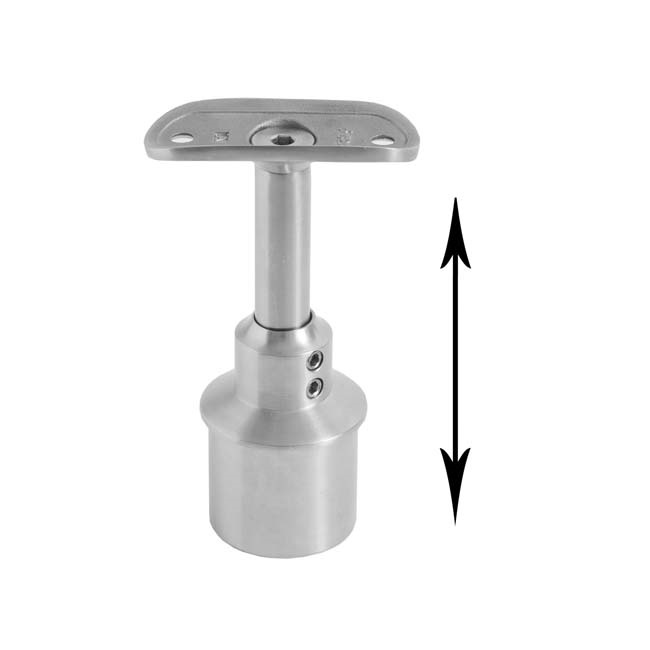

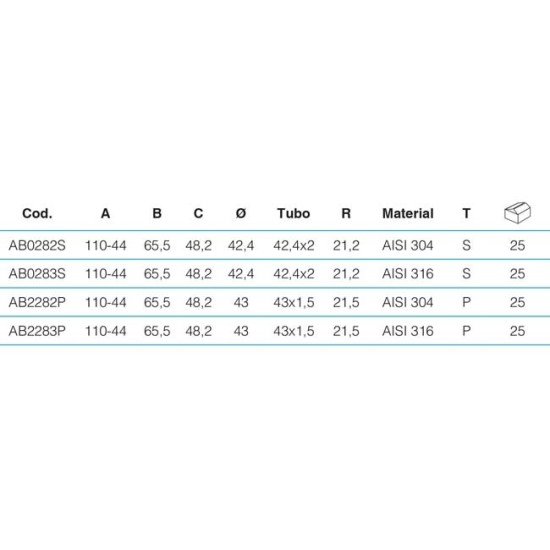

The height adjustable support is an accessory for stainless steel handrails. This support serves as a union between two perpendicular tubes, one of them being fixed to the plate with screws to the tube which will create the handrails. This accessory for handrails is available for tube: 42,4×2 mm and 43×1,5 mm in AISI 304 and AISI 316 stainless steel. Moreover, it has an adjustment function which permits the height regulation of the support and therefore, of the handrails.

In Estebro, we are specialists in accessories for stainless steel handrails. Don´t miss all our accessories lines for stainless steel handrails: G-Line clamps for handrails for glass, C-Line accessories for rectangular tube frame handrails, R-Line accessories for round tube frame handrails.

If you are interested in stainless steel handrails, you can download our catalogues or request further information by filling our contact form.

Stainless Steel Railings Height Adjustable Support

Installation advice:

  1. Drill and thread the tube.
  2. Fix the support with AD100 adhesive (we recommend to clean carefully the areas to unite).
  3. Fix the support to the tube with 2 stainless steel M.6 screw.

If in the union screwed, you would like to reinforce the fixation, you can apply some drops of AD100 adhesive in the stainless steel screws, on this way, the union doesn´t have the possibility to be removed.
