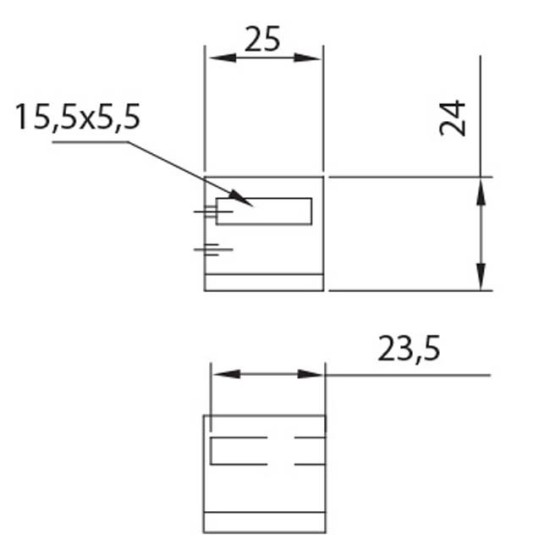

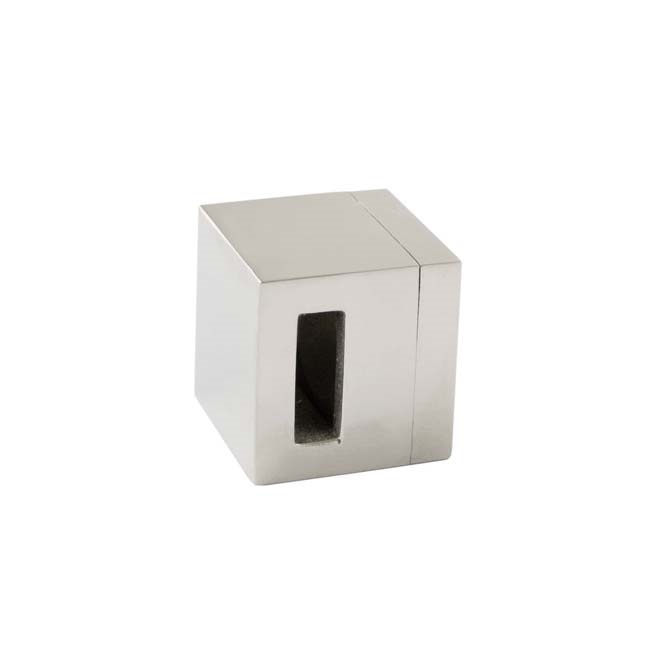

The end crossbar holder, left, AISI 316 stainless steel is an accessory for stainless steel squared handrail which function is to connect the tube and the platen. It has to be placed at the end of the platen and so used as an end cap. It is used for 15×5 platen. The position for the connector placement on the handrail is indicated through the screws position which should be on the bottom part of the item.
In Estebro, we have a large range of accessories for stainless steel handrails for 40x40x1,5 mm tube and other accessories for stainless steel handrails in round tube.
If you want, you can obtain further information by downloading our catalogue or by requesting information through our contact form.
Installation advice:
- Loosen the grub screws to separate both components from the connector: the base of the tube and the clamping of the platen.
- Drill and thread the tube
- Unite the base to the tube with stainless steel M.6 screws.
- Slide the platen in the drill of the holding element.
- Unite both elements and fix them by tightening the grub screws of the platen and the base
