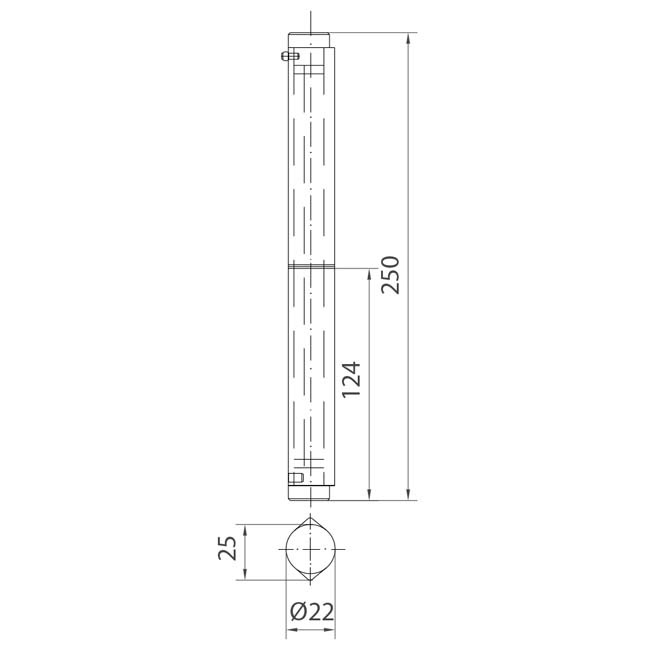

Drop profile hinge with spring.

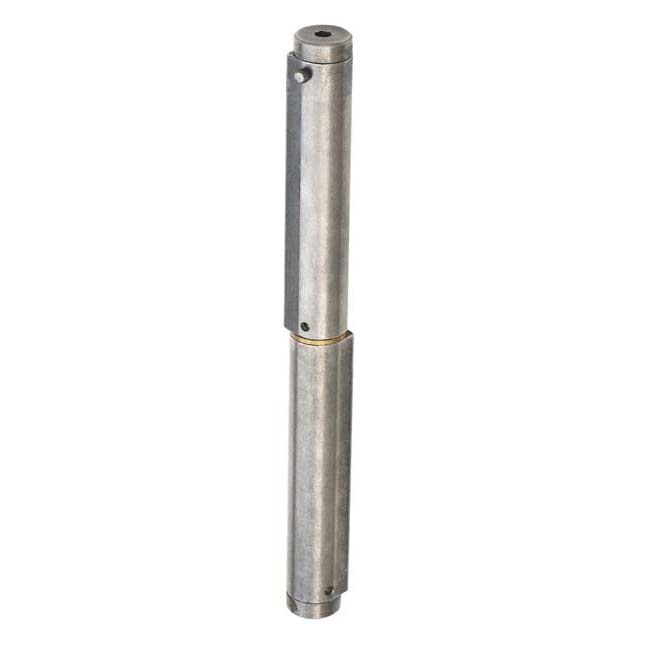

This hinge is normally installed on metallic swing doors to allow its opening and closing. Its drop profile shape facilitates the welding. The hinge has a spring around the axle which allows a return movement. It also has a screw which enables the regulation of the closing strength.
In Estebro we manufacture gate hinges since 1962. Discover our entire range of gate hinges on our web site, we manufacture different sort of hinges in different sizes and materials.
Are you interested in our gate hinges or drop profile hinge with spring? No not hesitate to request further information by filling in our questioner.
- Installation:

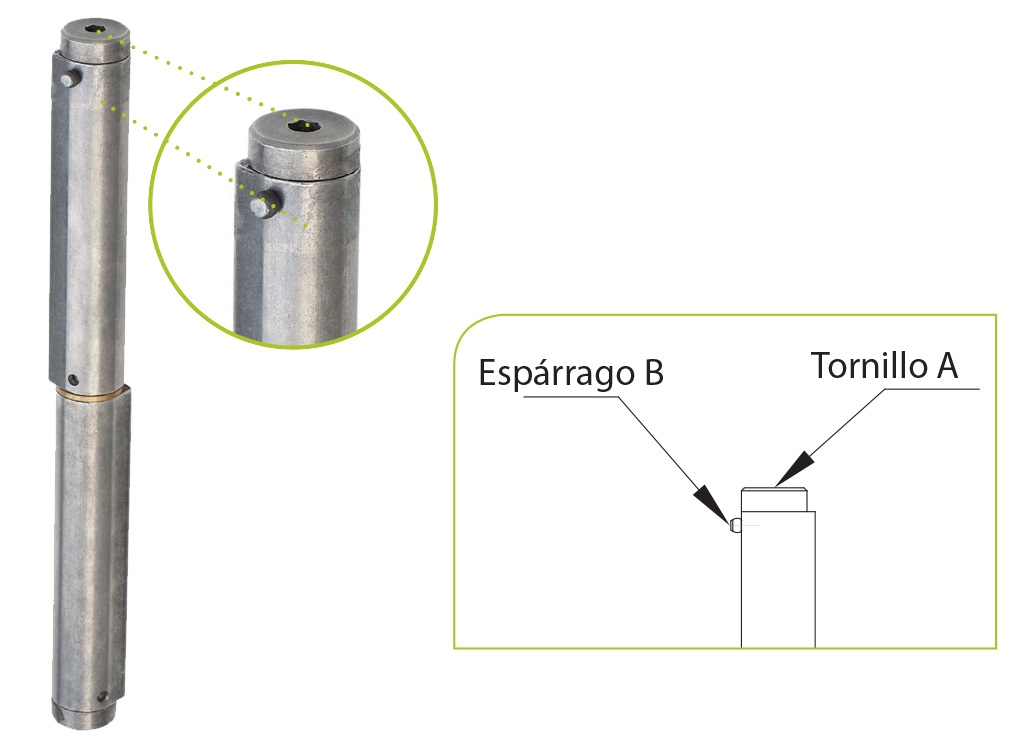

- Weld the hinge holding the fixed part to the door frame and the adjustable part to the door, so the B pin will be accessible to handle it.
- Once the door is fixed release the B pin. Use the A screw in order to apply pressure on the spring (Allen key 6 mm), choose from the 5 possible positions that the spring has, the one that has enough strength to make the door close by itself (self-closing).
- Fix the position chosen by fixing the B pin.
-
- Installation:
- Weld the hinge holding the fixed part to the door frame and the adjustable part to the door, so the B pin will be accessible to handle it.
- Once the door is fixed release the B pin. Use the A screw in order to apply pressure on the spring (Allen key 6 mm), choose from the 5 possible positions that the spring has, the one that has enough strength to make the door close by itself (self-closing).
- Fix the position chosen by fixing the B pin.
Download our catalog gate hinges. You can download it after filling in the following form.
