Adjustable wall support

Stainless Steel Banister Squared Wall Support
Stainless Steel Banister Squared Wall Support ABC286S Soporte Pared AjustableStainless Steel Handrails Squared Support (1)

Adjustable wall support

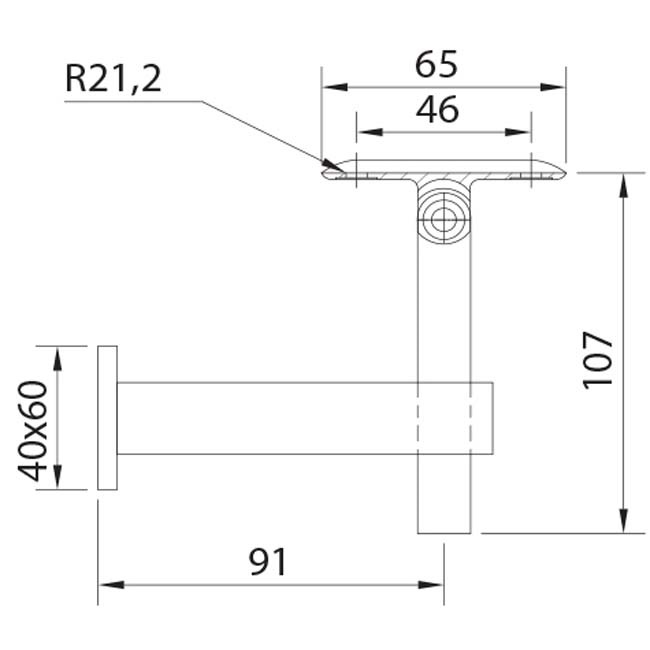

Adjustable wall support for stainless steel squared handrails for  40x40x1,5 mm tube.

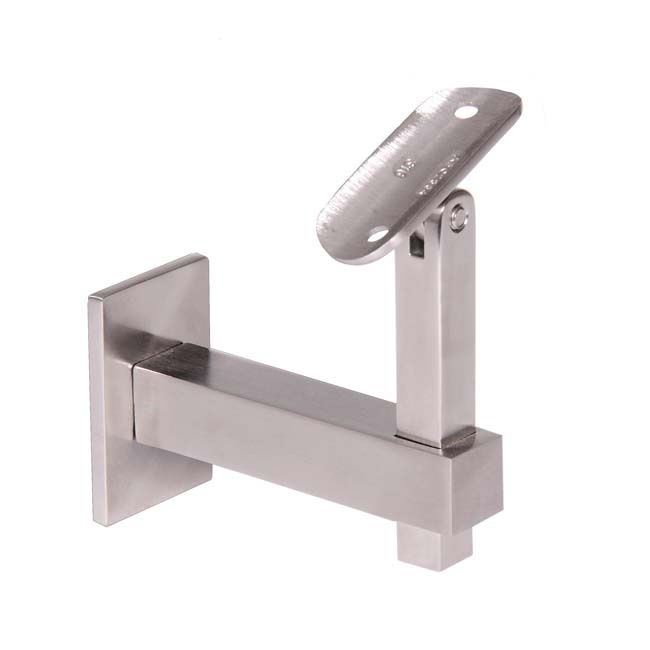

Adjustable wall support for AISI 316 stainless steel handrails. This support is an element of union between the wall and the tube, the degree level of the plate can be adjusted and moreover, its height is adjustable too. It is available in satin and polish finish and we can point out that the round bar and the plate of the support are removable. The tube handrail is fixed with M.5 screws to the holding plate.

In Estebro, we have a large range of accessories for stainless steel handrails for  40x40x1,5 mm tube and other accessories for stainless steel handrails in round tube.

If you want to have further information or know the rest of our accessories for stainless steel handrails, you can explore our website, download your catalogue or request more information through our contact form.

Installation advice:

  1. Drill and thread the tube.
  2. Fix the support by screwing it to the wall

If in the union screwed, you want to put a mayor holding, you can apply a few drops of AD100 adhesive in the stainless steel screws, so then, it would not be possible to remove the union.
