Adjustable handrail support

Stainless Steel Handrail Adjustable Support
Stainless Steel Handrail Adjustable Support AB0275Stainless Steel Handrails Adjustable Support

Adjustable handrail support:

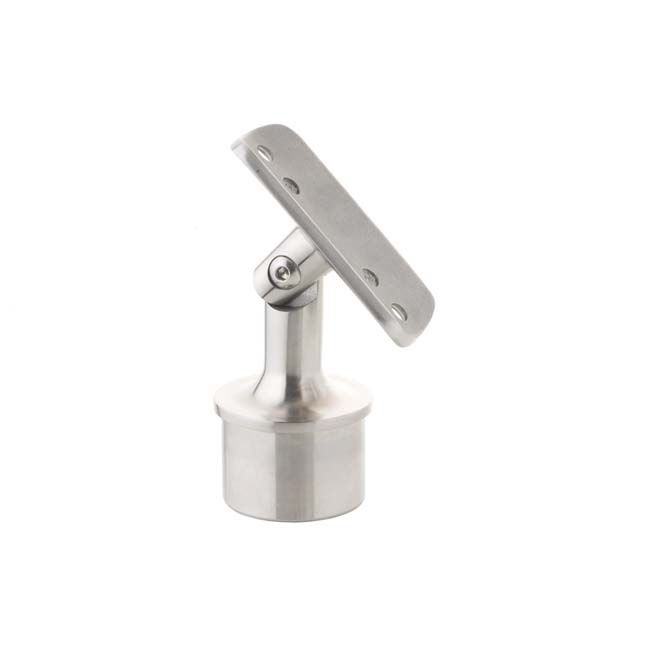

The adjustable support is an accessory for stainless steel handrails belonging to the R-line.

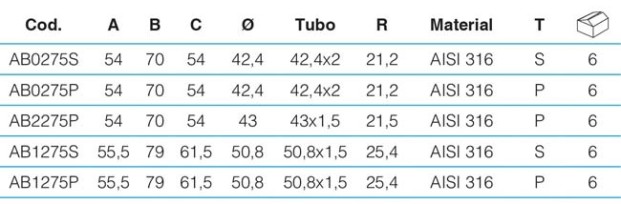

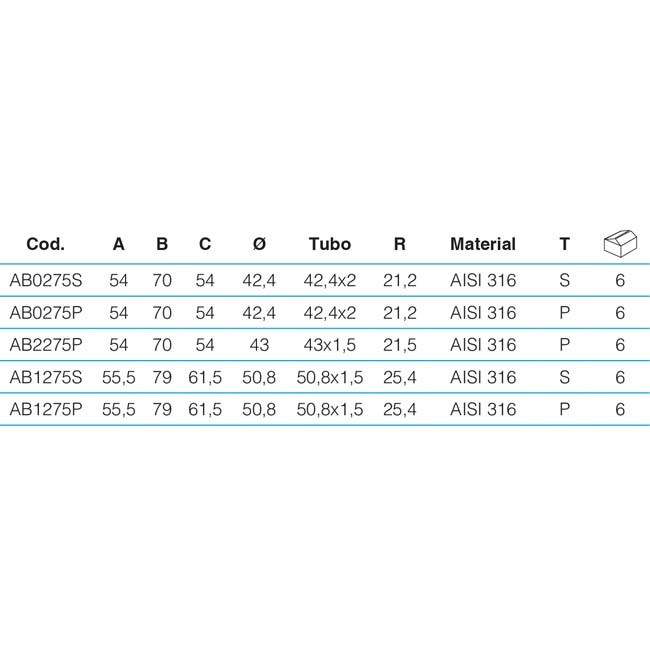

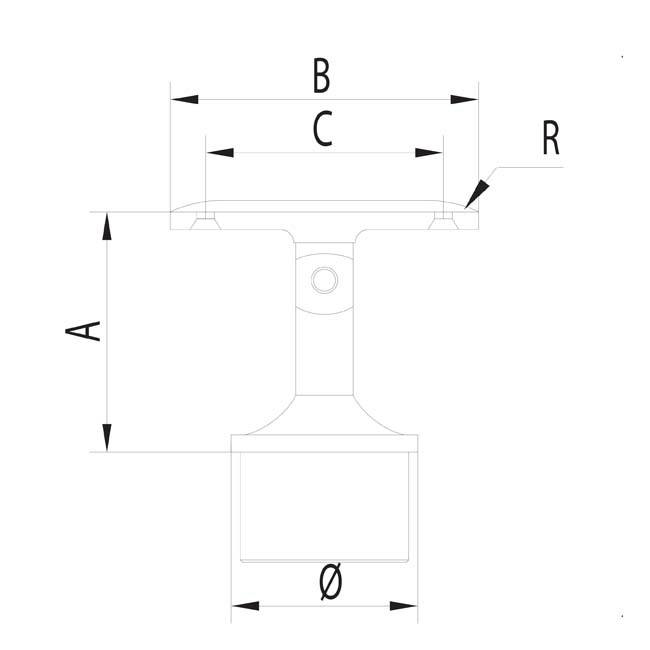

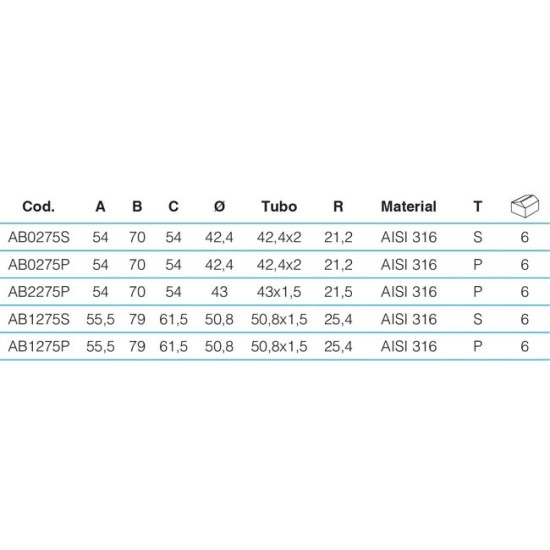

The adjustable support is an accessory for stainless steel handrails available for tubes: 42,4×2 mm, 43×1,5 mm y 50,8×1,5 mm in AISI 316 stainless steel. This support is an accessory for stainless steel handrails which serves as a union between two perpendicular tubes, being one of them being fixed to a plate with screws to the tube which will create the banister. It has an adjustment function which permits to regulate the banister.

In Estebro, we are specialists in accessories for stainless steel handrails. Don´t miss all our accessories lines for stainless steel handrails: G-Line clamps for handrails for glass, C-Line accessories for rectangular tube frame handrails, R-Line accessories for round tube frame handrails.

If you are interested in stainless steel handrails, you can download our catalogues or request further information by filling our contact form.

Stainless Steel Handrails Adjustable Support

Installation advice:

  1. Drill and thread the tube.
  2. Fix the support with AD100 adhesive (we recommend to clean carefully the areas to unite).
  3. Fix the support to the tube with 2 stainless steel M.5 screw.

If in the union screwed, you would like to reinforce the fixation, you can apply some drops of AD100 adhesive in the stainless steel screws, on this way, the union doesn´t have the possibility to be removed.
