Adjustable flat support

Stainless Steel Handrails Squared Support
Stainless Steel Handrails Squared Support stainless steel handrail squared support

Adjustable flat support

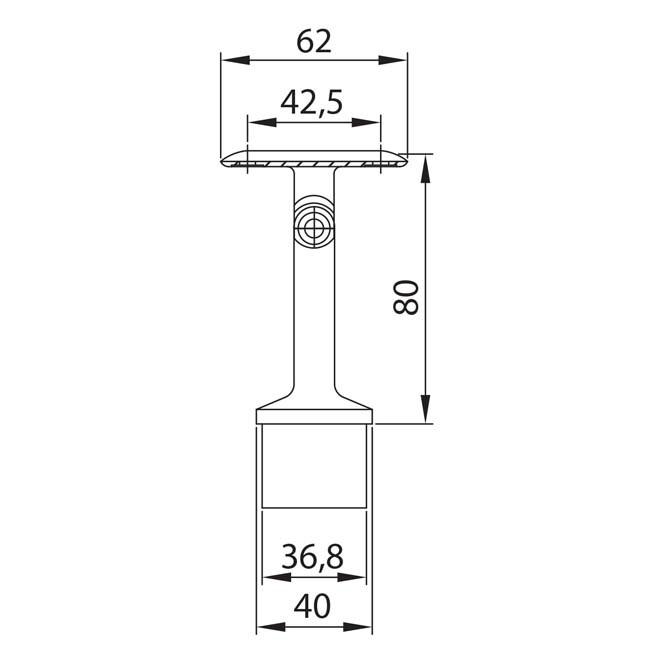

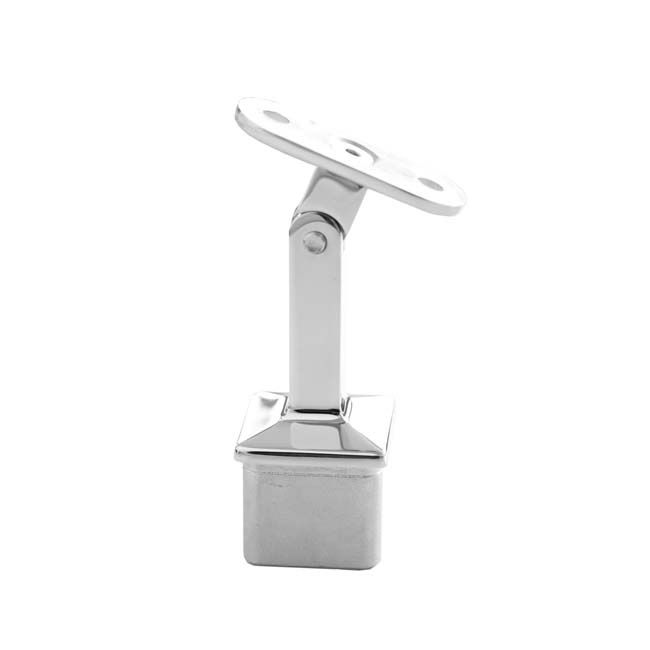

AISI 316 stainless steel adjustable flat support for stainless steel squared handrails for  40x40x1,5 mm tube.

AISI 316 stainless steel adjustable flat support for stainless steel  squared handrails for  40x40x1,5 mm tube, available in satin and polish finish. It´s an element of union between two tubes, which would be the handrail post and the banister. This support is adjustable, which permits a variable angle. The plate of the support is fixed to the banister tube with M.5 screws. In this support, the plate and the round bars of the support are removable.

In Estebro, we have a large range of accessories for stainless steel handrails for  40x40x1,5 mm tube and other accessories for stainless steel handrails in round tube.

If you want, you can obtain further information by downloading our catalogue or by requesting information through our contact form.

Installation advice

  1. Drill and thread the tube.
  2. Fix the support by uniting it with AD100 adhesive (we recommend to clean carefully the area to unit)
  3. Fix the support to the tube with 2 stainless steel M.5 screws.

If in the union screwed, you want to put a mayor fixation, you can apply a few drops of AD100 adhesive in the stainless steel screws, so then, it would not be possible to remove the union.
