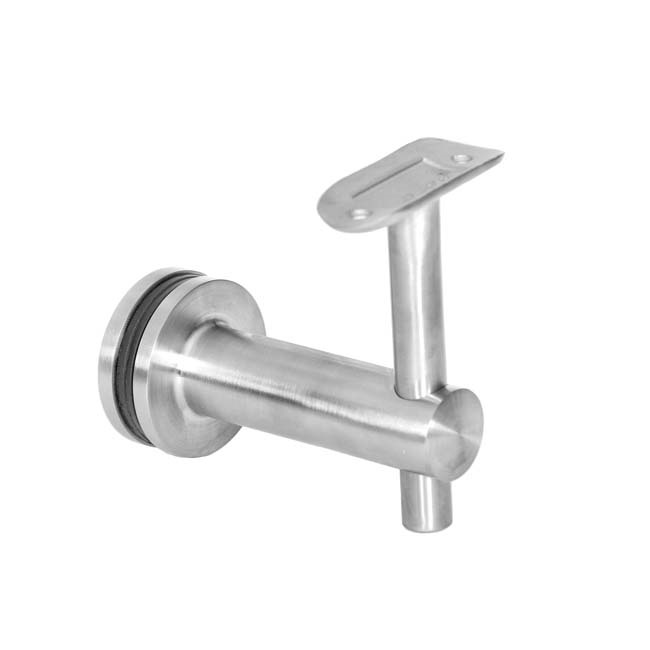

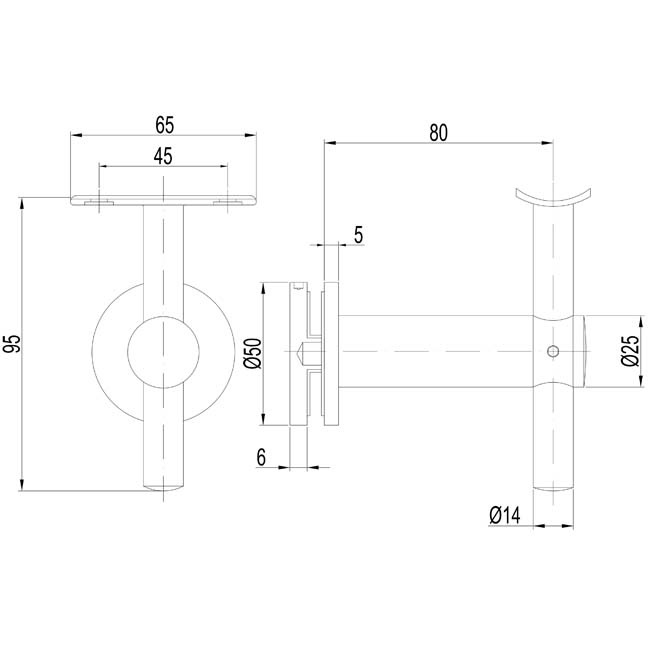

The 90º glass support is an accessory for stainless steel handrails and crystal. This support to glass serves as a union between the handrails tube and the glass by covering a 90º angle, it has an height adjustable. This accessory for handrails is available for tube of: 42,4×2 mm and 43×1,5 mm in AISI 304 stainless steel. This support is valid for 8mm minimum glass thickness.
Discover everything about our accessories for stainless steel handrails or stainless steel banisters by downloading our catalogues or by requesting more information through our contact form.
Installation advice:
- Drill and thread the tube.
- Fix the support with AD100 adhesive (we recommend to clean carefully the areas to unite).
- Fix the support to the tube with stainless steel M.5 screw.
If in the union screwed, you would like to reinforce the fixation, you can apply some drops of AD100 adhesive in the stainless steel screws, on this way, the union doesn´t have the possibility to be removed.
