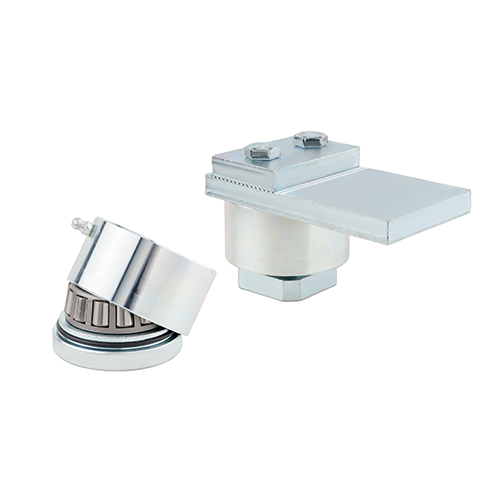

70mm pivot hinge with bearing
The 70mm pivot hinge with bearing is an hardware valid for swing gates.
This pivot hinge has a O-ring to have a better waterproofing. This hardware is available in a complete set or individually.
How should this pivot hinge have to be installed on a swing gates? If you would like to know the installation details about this pivot hinge, please read the installation tab.
Our 70mm pivot hinge with bearing is from our own manufacture. We are gate hardware manufacturers since 1962 at your service.
If you would like to have further information on our 70mm pivot hinge with bearing or on our hardware for swing gates, you can request it through our contact form located in the information request tab. We will get back to you as soon as possible.

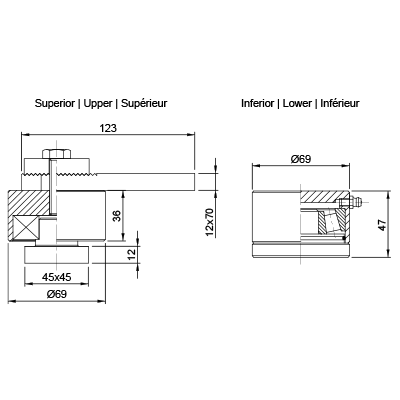

- Installation: The upper part is installed by welding the square to the upper part of the door and the plate to the frame, or by fitting it into the concrete of the wall. The lower part is welded to the piece installed on the floor and to the lower part of the door, allowing its opening and closing.
Download our catalog swing doors hardware. You can download it after filling in the following form.
