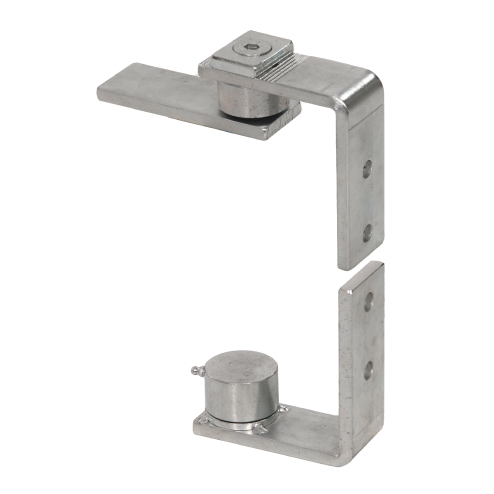

50mm pivot hinge to scren with ball bearing
Pivot hinge to screen with 50mm ball bearing is an hardware valid for swing gates.
This new hardware, 50mm pivot hinge with ball bearing, permits an installation without welding them to the frames, whether on the floor or on the wall.
We manufacture this hardware in steel.

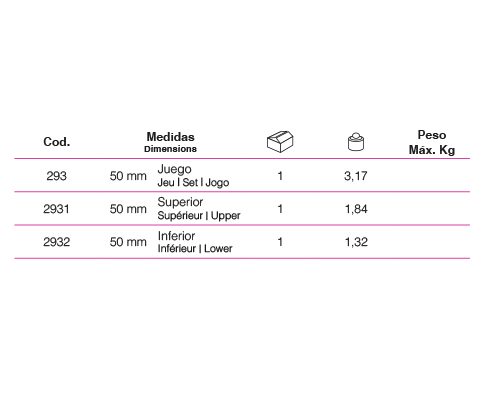

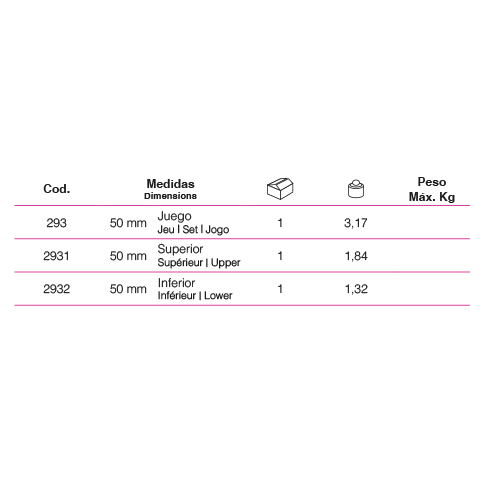

You will find it individually (upper cod 2931 and lower cod 2932) and in a complete set (cod 293).
¿How should this pivot hinge have to be installed on a swing gate?
If you would like to have more details on the installation of those pivot hinges for swing gates, read the installation tab.
In Estebro, we are manufacturer of gates gears. We trust on the quality of our hardware, the investigation, the development and the best customer service.
If you want to have further information on our 50mm pivot hinge to screen with ball bearing or on our hardware for swing gates, you can request it through our contact form located in the information request tab. We will get back to you as soon as possible.

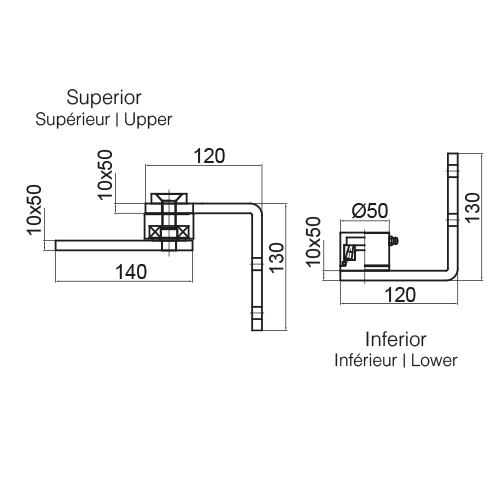

- Installation: Tips to install the 50mm pivot hinge with ball bearing:The 50mm pivot hinge to screw with ball bearing is composed of 2 parts: a top and a bottom part.
The top part is installed by placing the L shape plate to the wall and by welding the other plate to the frame.
The bottom part: The L shape plate has to be screwed to the wall and the pivot hinge has to be welded on the bottom part of the door permitting, like this, its opening and closing movement.
Download our catalog swing doors hardware. You can download it after filling in the following form.
