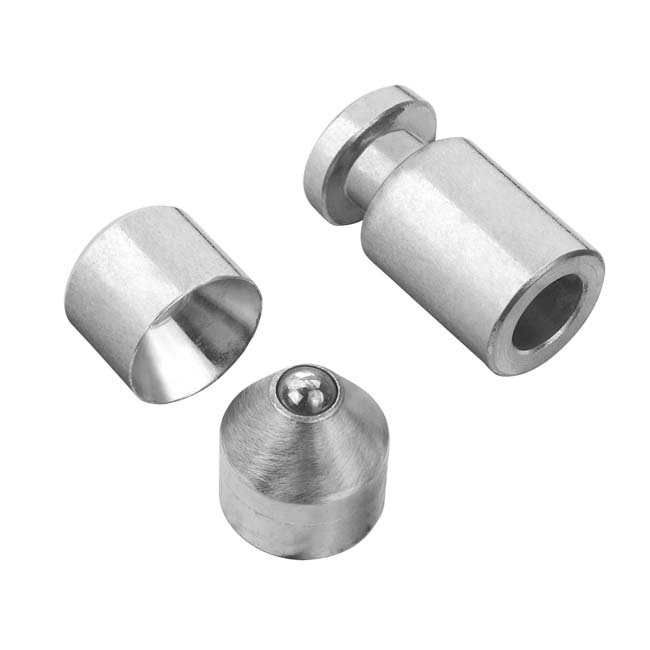

40mm pivot hinge with ball
The 40mm pivot hinge with ball is an hardware valid for swing gates.
This hardware pivot hinge permits the door opening and closing. The 40mm pivot hinge with ball can be provided as a complete set (upper and lower) or individually, upper part and lower part.
In Estebro, we are door hardware manufacturers. In this section, you will discover our gates gears. We bet on the quality of our hardware, the research, the development and the best consumer service.
If you would like to have further information on our 40mm pivot hinge with ball or on our hardware for swing gates, you can request it through our contact form located in the information request tab. We will get back to you as soon as possible.

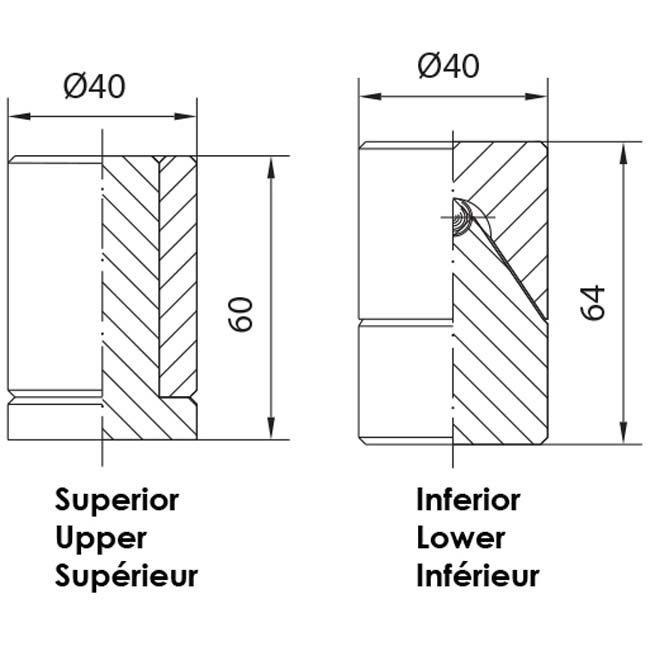

- Installation: The 40mm pivot hinge with bearing is composed of 2 parts: the upper part is installed by welding the square to the upper part of the door and the plate to the frame, or by fitting it into the concrete of the wall. The lower part is welded to the piece installed on the floor and to the lower part of the door, allowing its opening and closing.
Download our catalog swing doors hardware. You can download it after filling in the following form.
