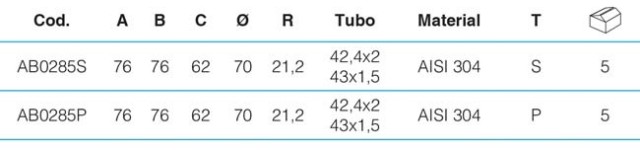

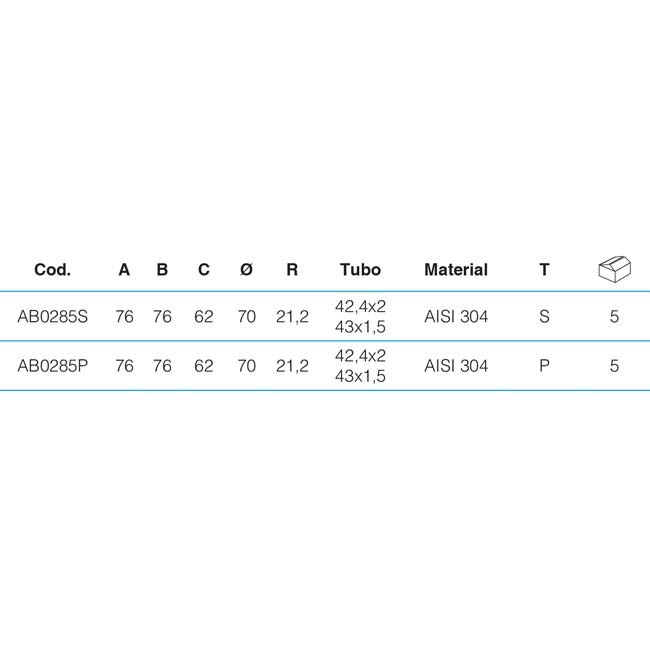

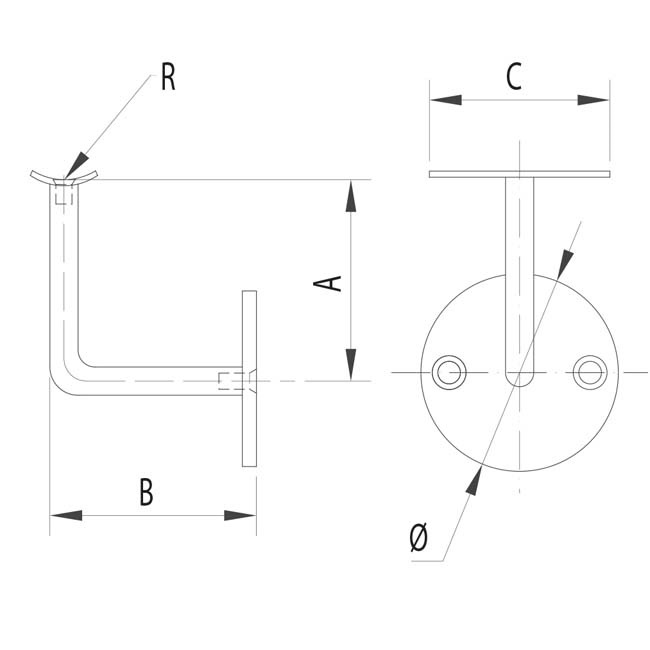

The adjustable 3-pieces 90º wall support is an accessory for stainless steel handrails. This support for wall serves as a union between the tube handrails and the wall by covering a 90º angle in curve. This accessory for handrails is available for tube: 42,4×2 mm and 43×1,5 mm in AISI 304 and AISI 316 stainless steel. The wall support for handrails is fixed to the wall with screws to a fixation plate, its adjustable function permits the handrails adjustment. The plate and the round bars of this support are removable.
Discover all our accessories for stainless steel handrails: G-Line: clamps for crystal handrails, C-Line: accessories for squared lines accessories, R-Line: accessories for round lines accessories. Stainless steel handrails: banisters kits and handrails tailor-made.
If you would like to have further information on accessories for stainless steel handrails or stainless steel banisters, do not hesitate to download our catalogues or request more information by filling our form.
Installation advice:
- Drill and thread the tube.
- Fix the support with AD100 adhesive (we recommend to clean carefully the areas to unite).
- Fix the support to the tube with 2 stainless steel M.5 screw.
If in the union screwed, you would like to reinforce the fixation, you can apply some drops of AD100 adhesive in the stainless steel screws, on this way, the union doesn´t have the possibility to be removed.
Download our catalog stainless steel handrails R-Line. You can download it after filling in the following form.
