HIPPODROME OF LONGCHAMP– PARIS
HARDWARE FOR 360 HANGING SLIDING DOORS

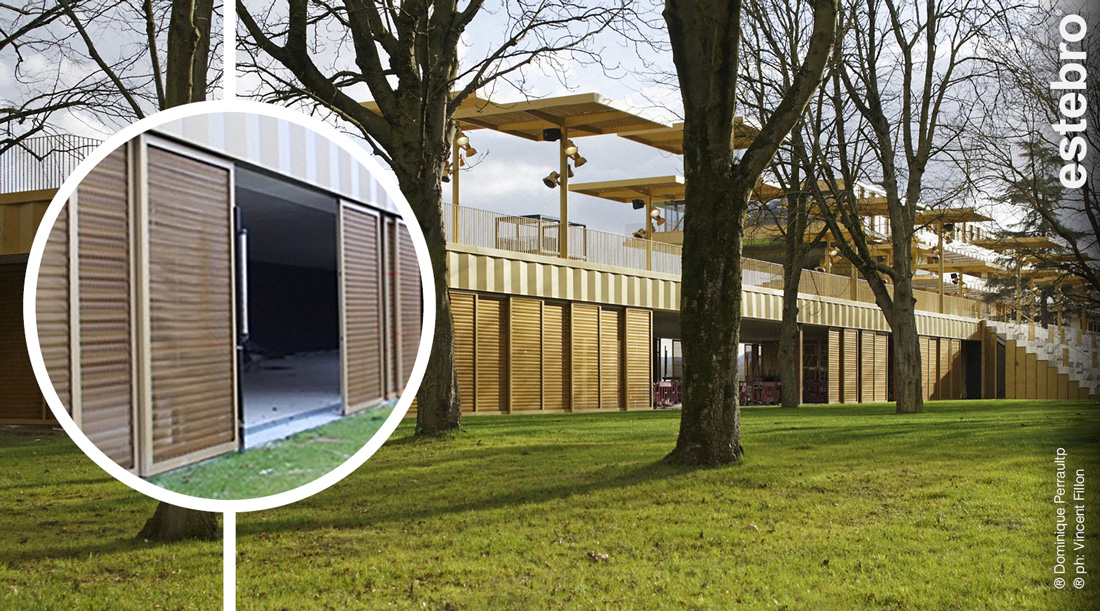

The hippodrome extends over 57 hectares between the Seine and the Bois de Boulogne.

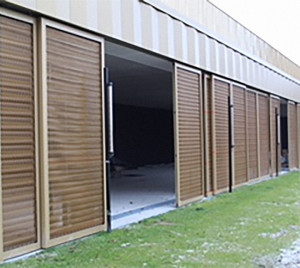

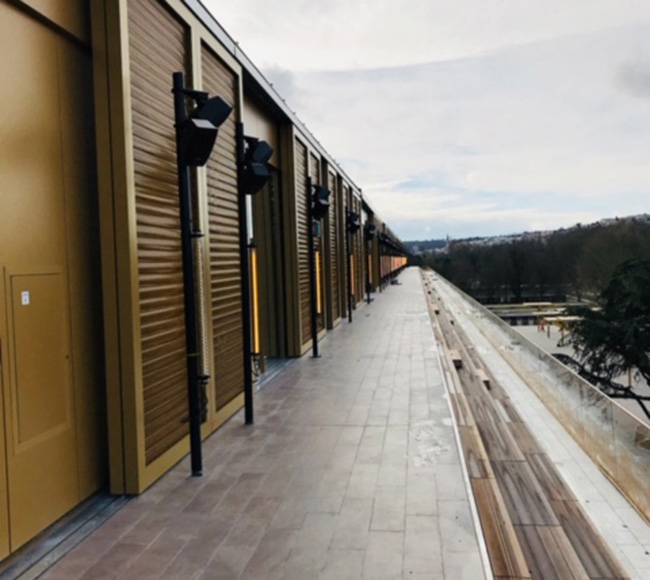

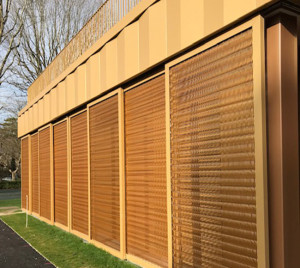

Those impressive installations are totally renovated and restored and since then, our hardware are in charge of loading the weight of the sliding doors of the horse stalls which permits to the race horses to enter and go out from the stalls, before and after each championship.
In total, there are more than 360 doors of different sizes, which led us to install different range of products according to the needs of each door. By installing the hardware from the U-40 range on the doors of small and large sizes (up to 300 kilos.) and the U-60 range on the biggest and heaviest doors (up to 450 kilos.). Given the weight of the doors, it was not necessary to use the U-70 range (up to 2000 kilos.) as the doors didn´t load more than 450 kilos.
ESTEBRO PRODUCTS USED FOR THIS PROJECT:
U-40 Range | E300 (up to 300 kg)
- U-40 Top track, code 478
- U-40Adjustable bracket, code 4786
- U-40 Joint, code 47810
- U-40 Double Trolley, code 466
- U-40Top stopper, code 47801
U-60 Range | E450 (up to 450 kg)
- U-60 top track, code 479
- U-60 Double Wheel hanger E450 Nylon, code 467
- U-60 Joint, code 47910
- U-60 Top stopper, code F479
- U-60 Adjustable bracket , code 4796
U-19 Range
- U-19 Bottom guide, code 790
